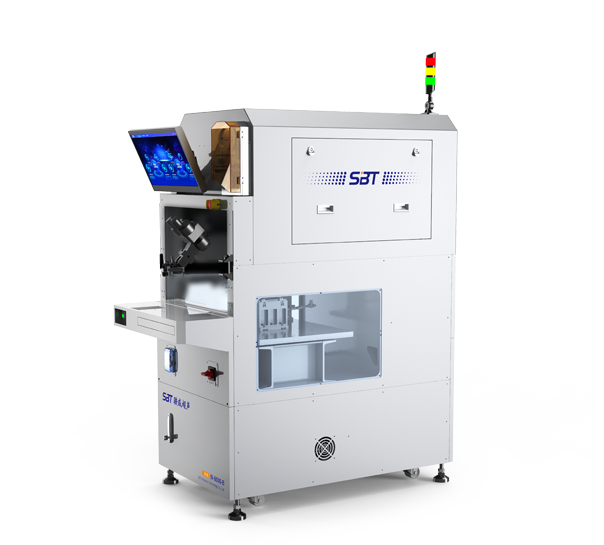

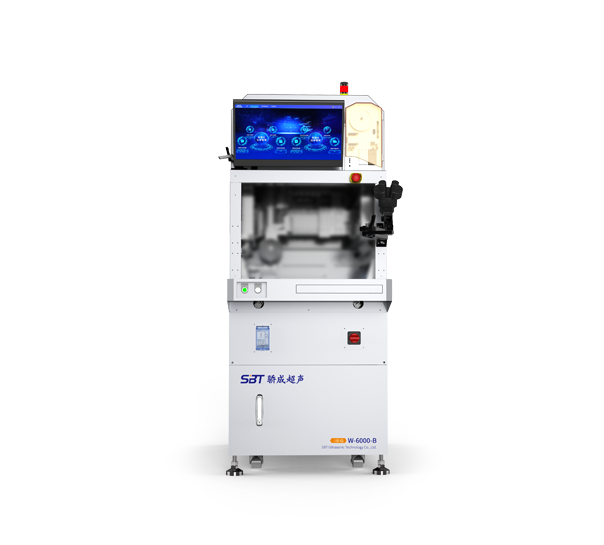

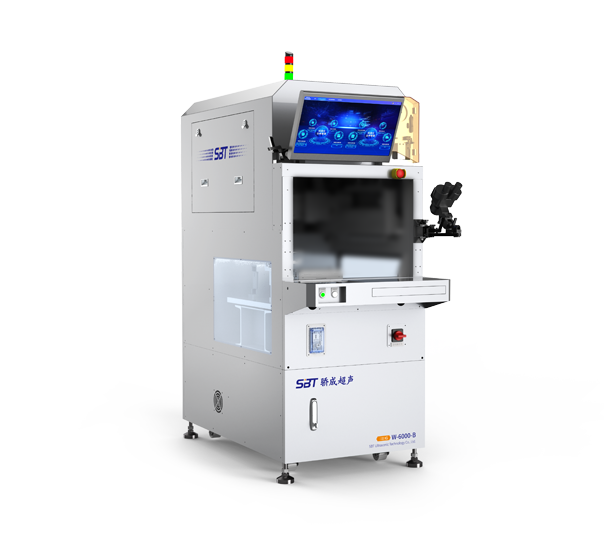

Aluminum Wire Ultrasonic Bonding Machine
Application

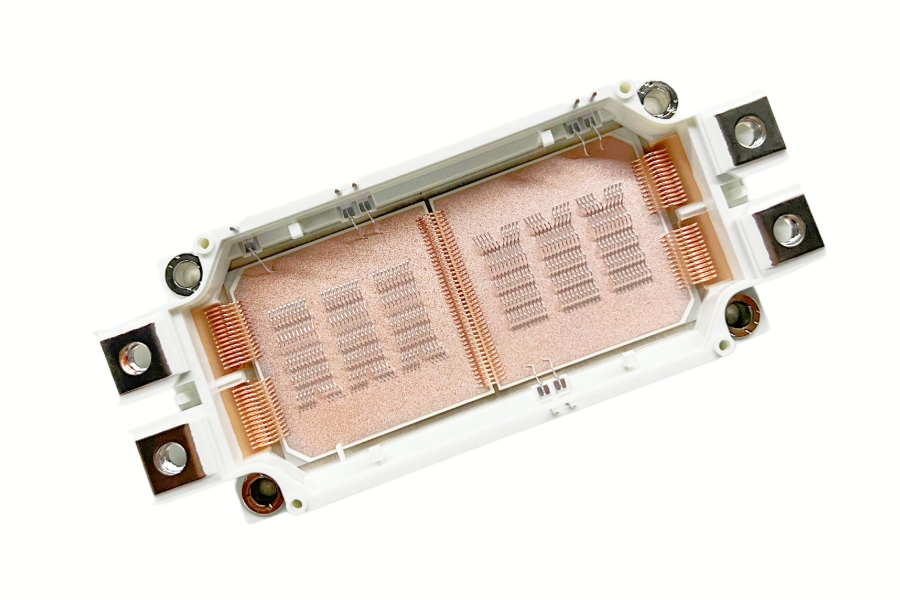

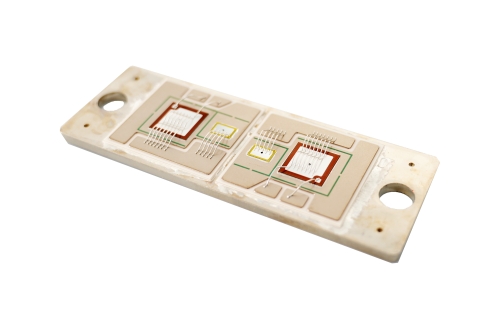

IGBT, Automobile electrics, Laser facilities, Car-mounted charging stations, Battery.
Features
Double drive control mode.
Marble platform.
Online welding quality monitoring.
In-line transport pulltester (ALC).
Magnetic spring compensation technology.
New GBS reduces consumable replacement time.
Technical Parameter
X, Y Axes
Linear motors, 0.1μm Resolution
Bond Area
300㎜*300㎜
Z-Axis
0.1 Resolution
Z-Stroke
50㎜
R-Axis
Direct Drive, ±220°, 0.096° Resolution
Repeatability
±3μm at 3σ
Wire Range
100-500μm Diameter
Bond Head
Front cutting or back cutting
Bond Pressure
Programmable, 50-1500g
Accuracy
＜175g, ±5g. ＞175g, ±3%
Pulltesting
Pull force
Dimensions
800㎜(W)*1600㎜(D)*1850㎜(H)
Weight
800kg
