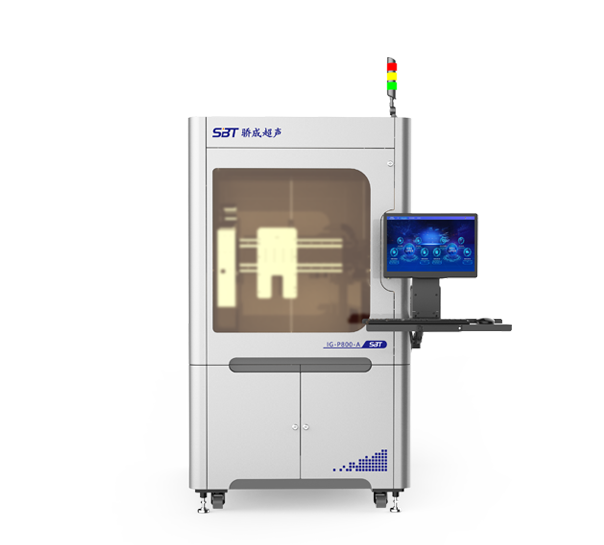

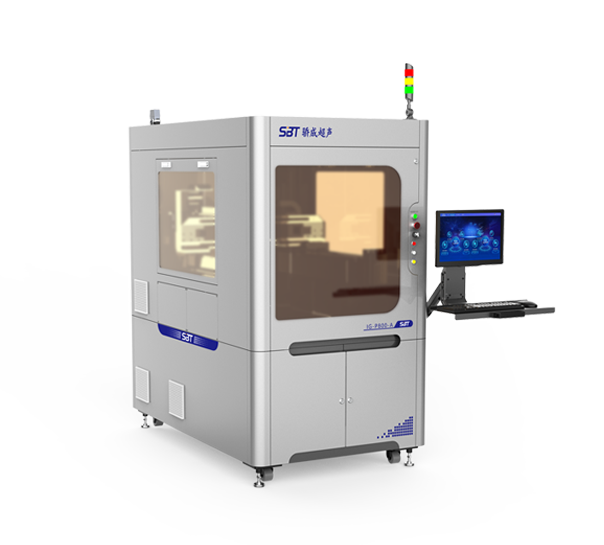

Pins Ultrasonic Welder
Application

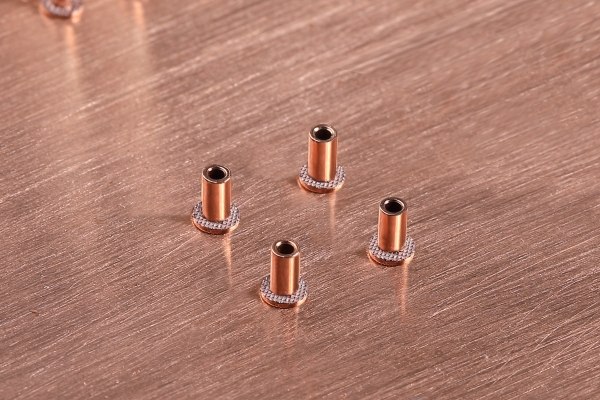

Pins, pins holder, fish eye pins.
Features
Can replace soldering process.
Automatic needle insertion, automatic positioning, and automatic welding.
High welding strength and reliability.
Low resistance and high heat conduction efficiency.
No cleaning required.
Technical Parameter
Welding mode
Time/Energy/Height
Loading mode
Semi-automatic/Fully automatic
Amplitude range
50%~100%
Power
8kW
Z-axis stroke
≥60㎜
Positioning system
Visual positioning and visual guidance
Motion system
Fully servo control
Quality monitoring
Various data monitoring, process control
MES system
Available
Optional
Scanning gun, dust-removing system
