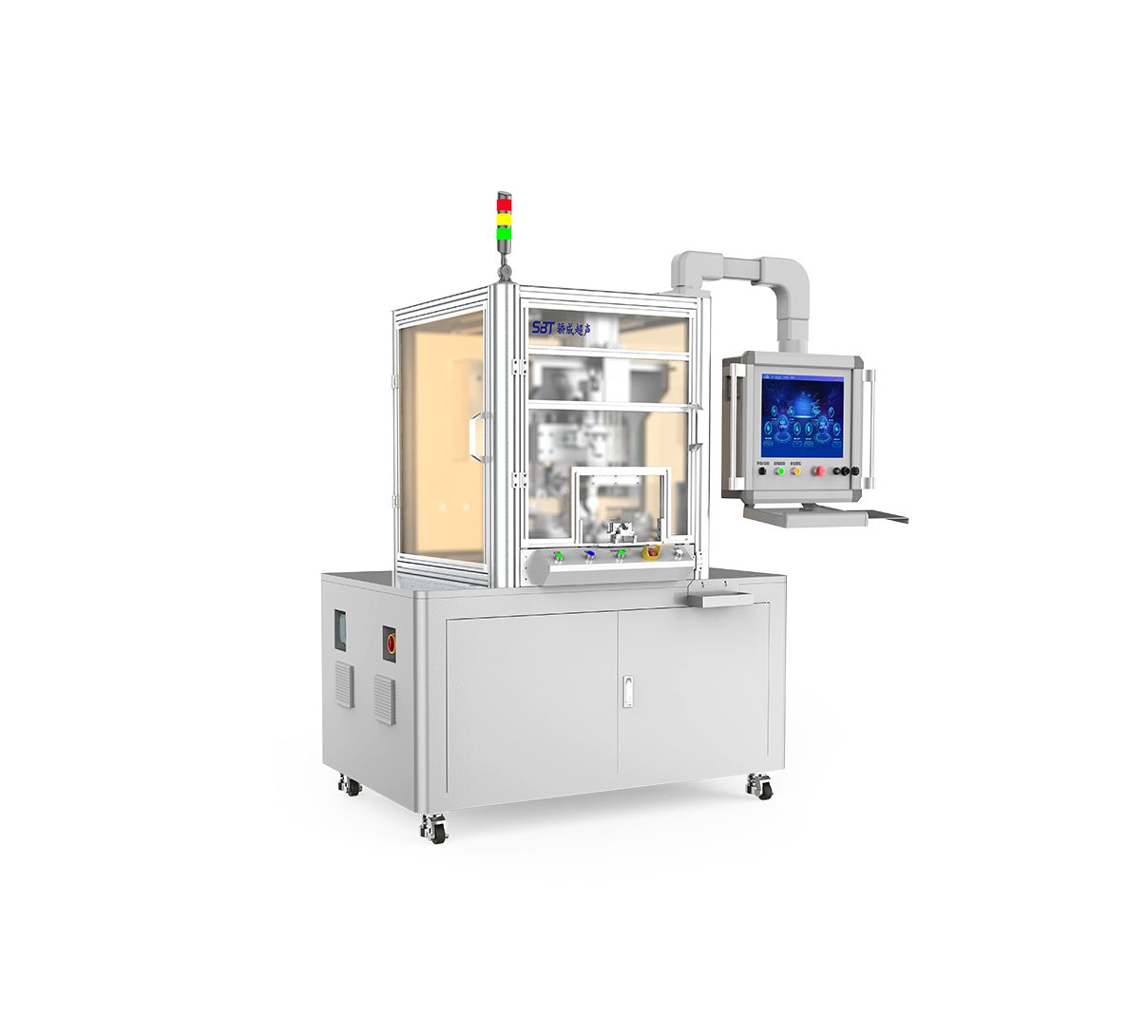

Ultrasonic Wire Harness Welder WD
Application
Cu wires/terminals & Al wires/terminals
Features
Fully digital ultrasonic control system
Welding heads and bottom molds can be customized
Easy to operate
Vertical wedge welding
Can be equipped with a wire harness automatic feeding system
Technical Parameter
Mode
Duration/Energy
Frequency
20 kHz
Amplitude Setting
10-70μm
Cable Size(Cu)
16-50㎜2 or 16-70㎜2
Power Supply
380 V
Air Pressure
0.6 Mpa
Protect
Password and parameter protection
Control
IPC control
Data
Traceable
