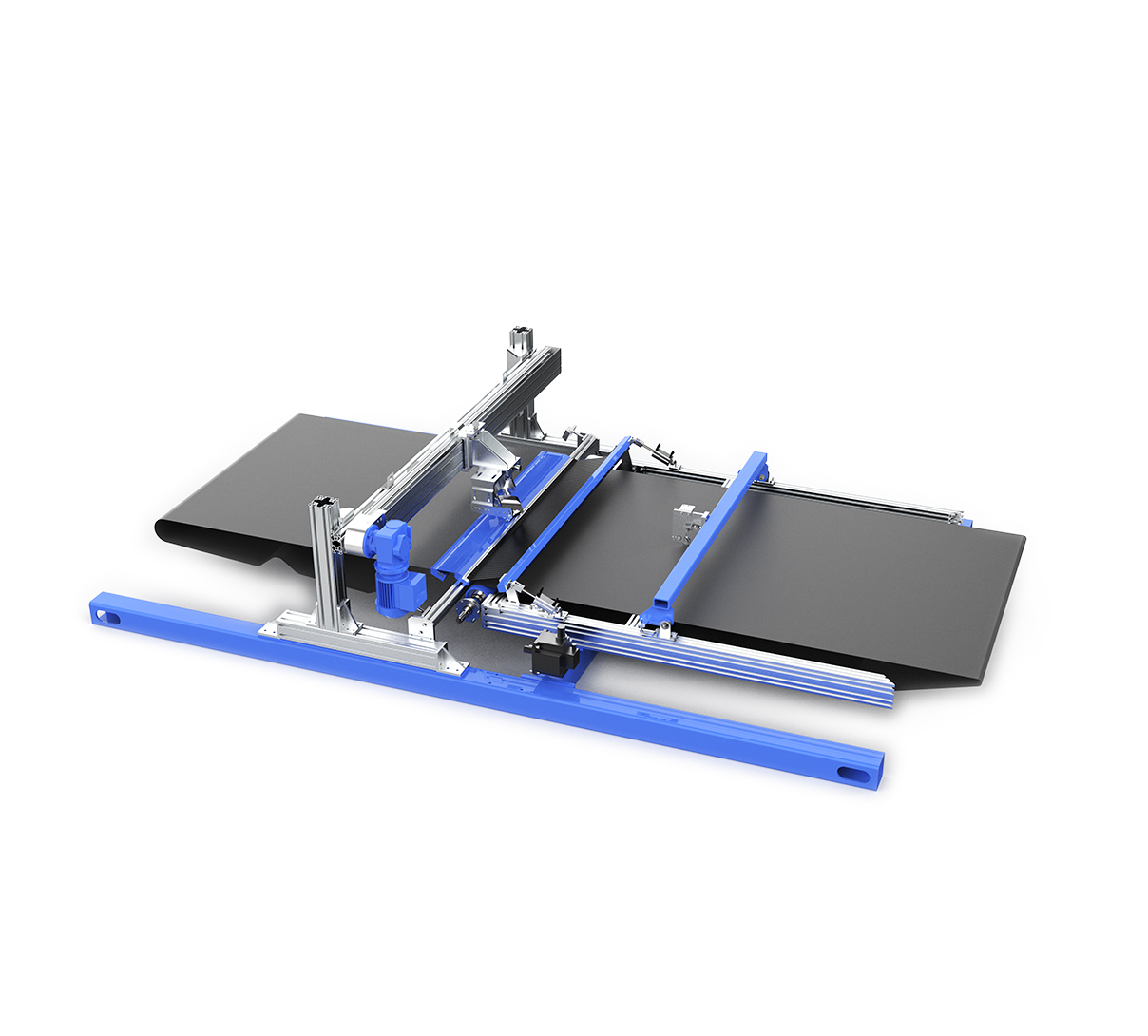

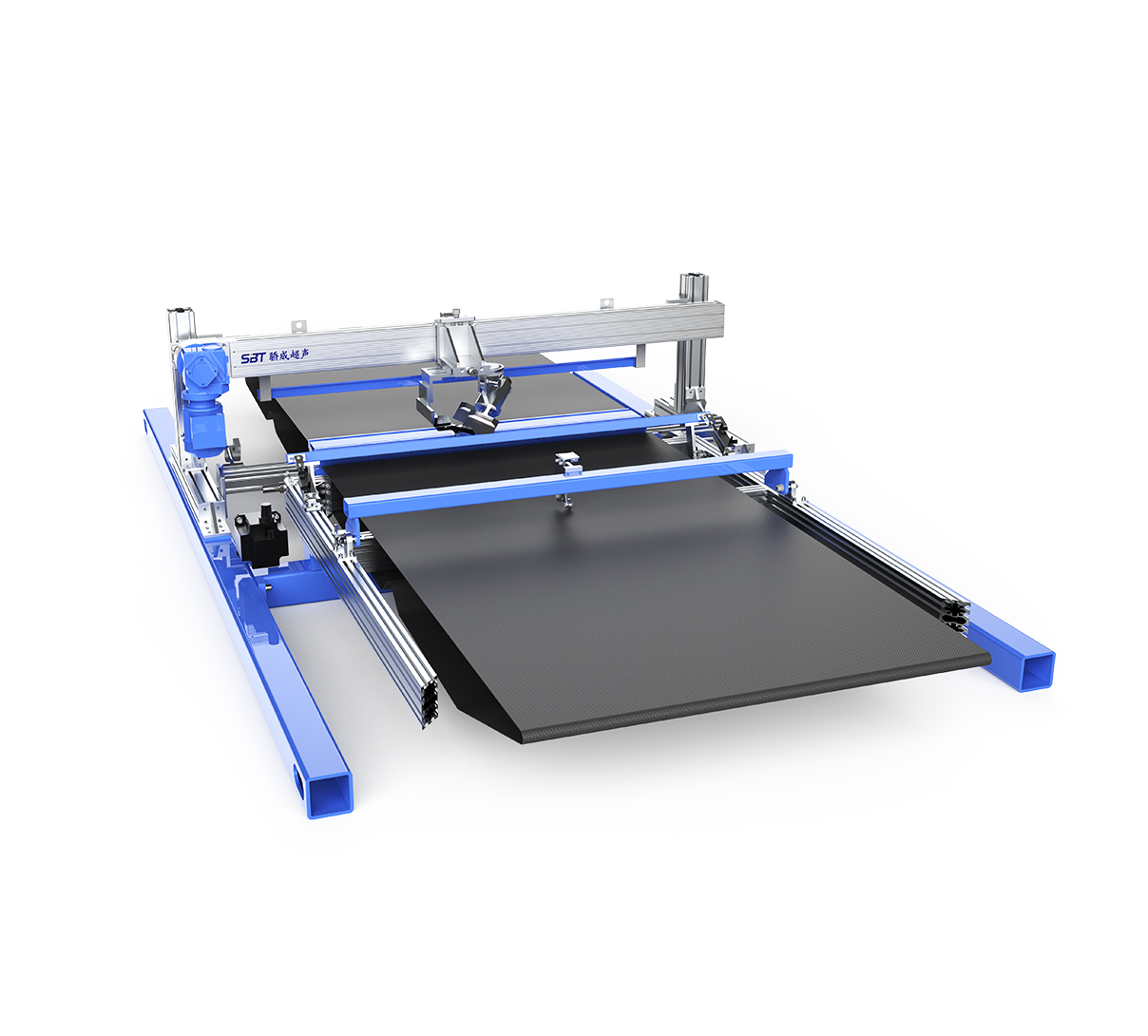

Ultrasonic Traverse Cutting System
Application
Tire inner liner rubber, sidewall rubber, PA, bead filler, shoulder rubber, tread rubber
Features
The cutter angle can be easily adjusted to match the rubber tire's adhesion angle.
The cutting angle is parallel to the plane, with minimal perpendicular error.
The cutting speed is adjustable, and the operation is simple and convenient.
Technical Parameter
Frequency
40 kHz/ 20 kHz
Power
600 W~2400 W
Maximum cutting width
4000 m
Maximum cutting thickness
35 ㎜
Cutting angle range
18°~30°
