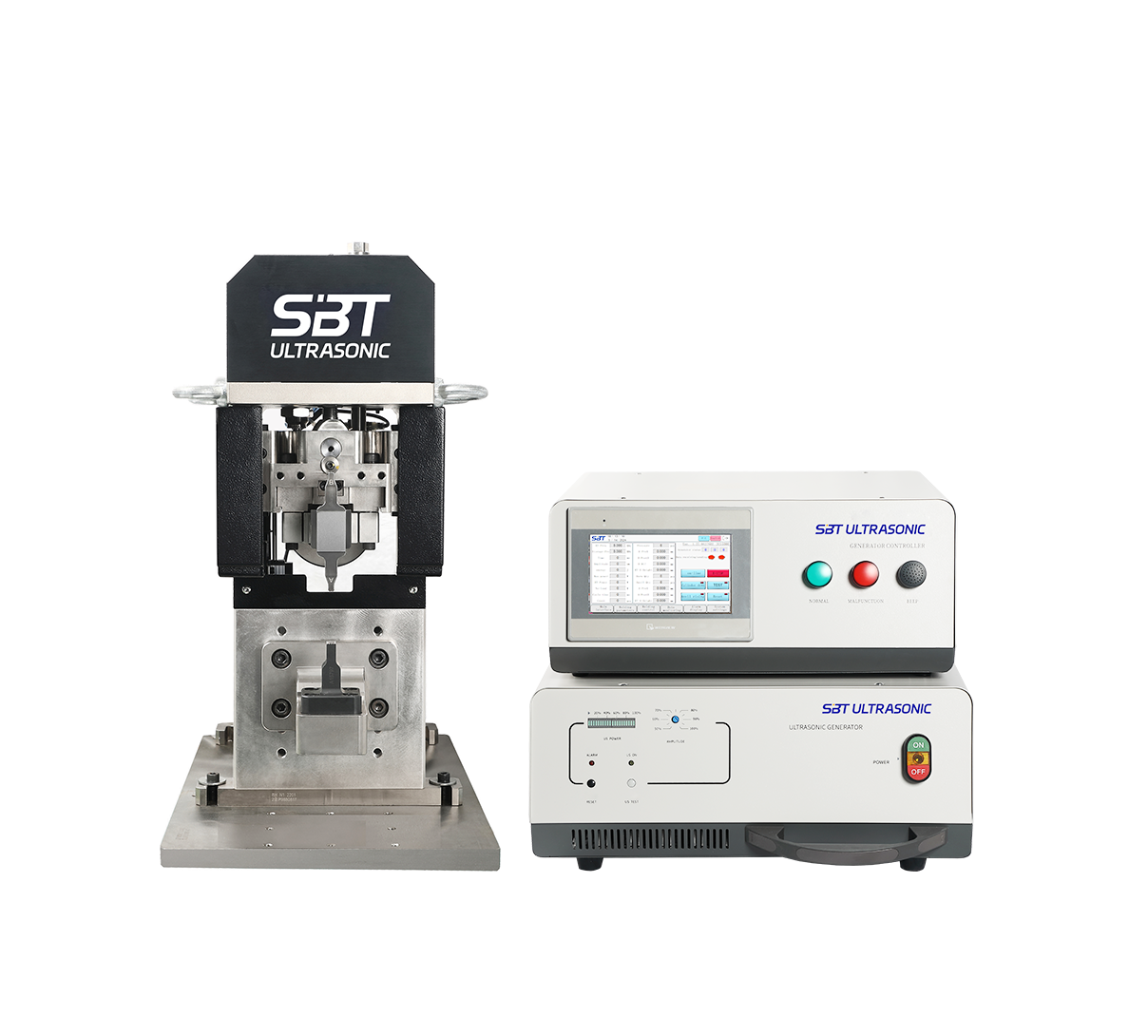

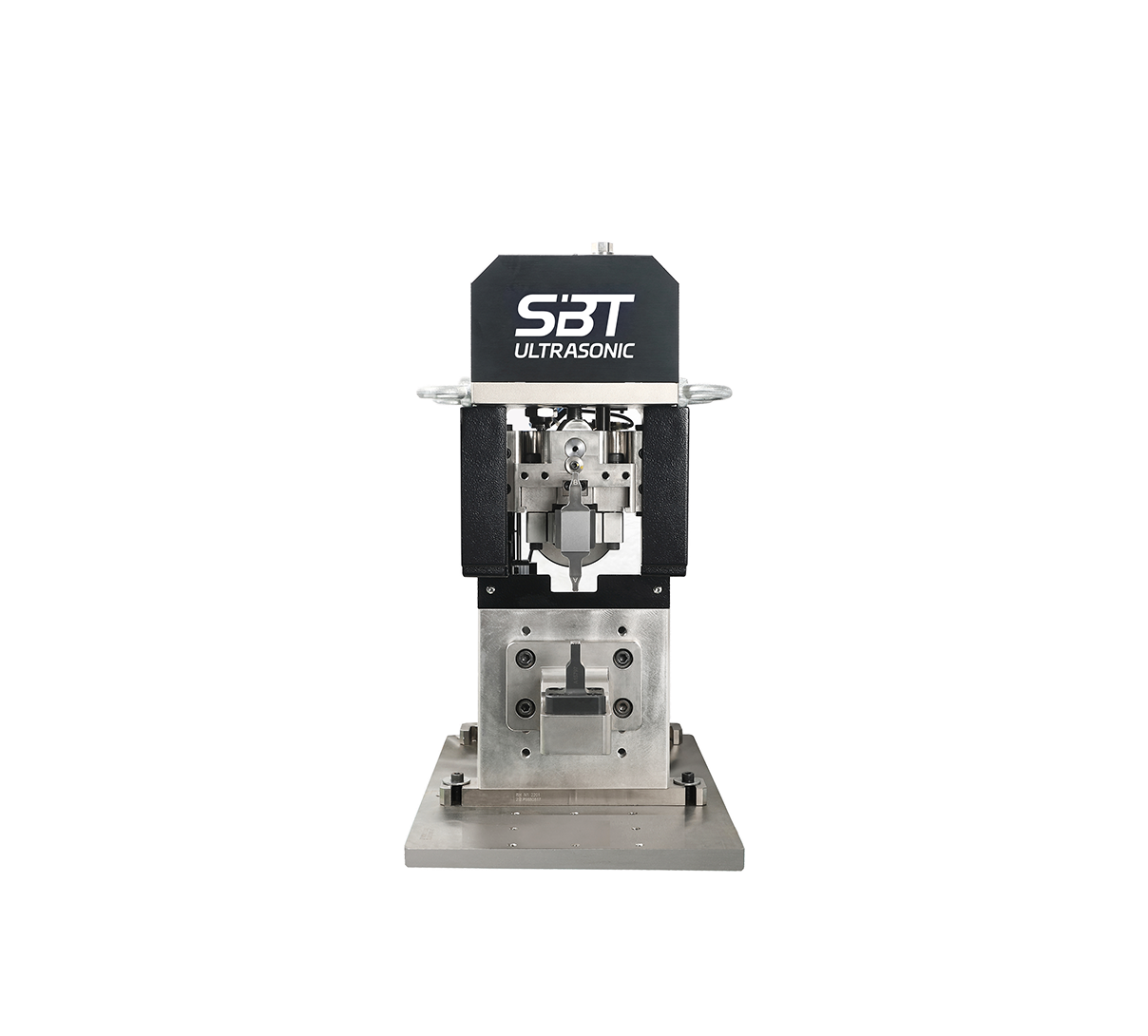

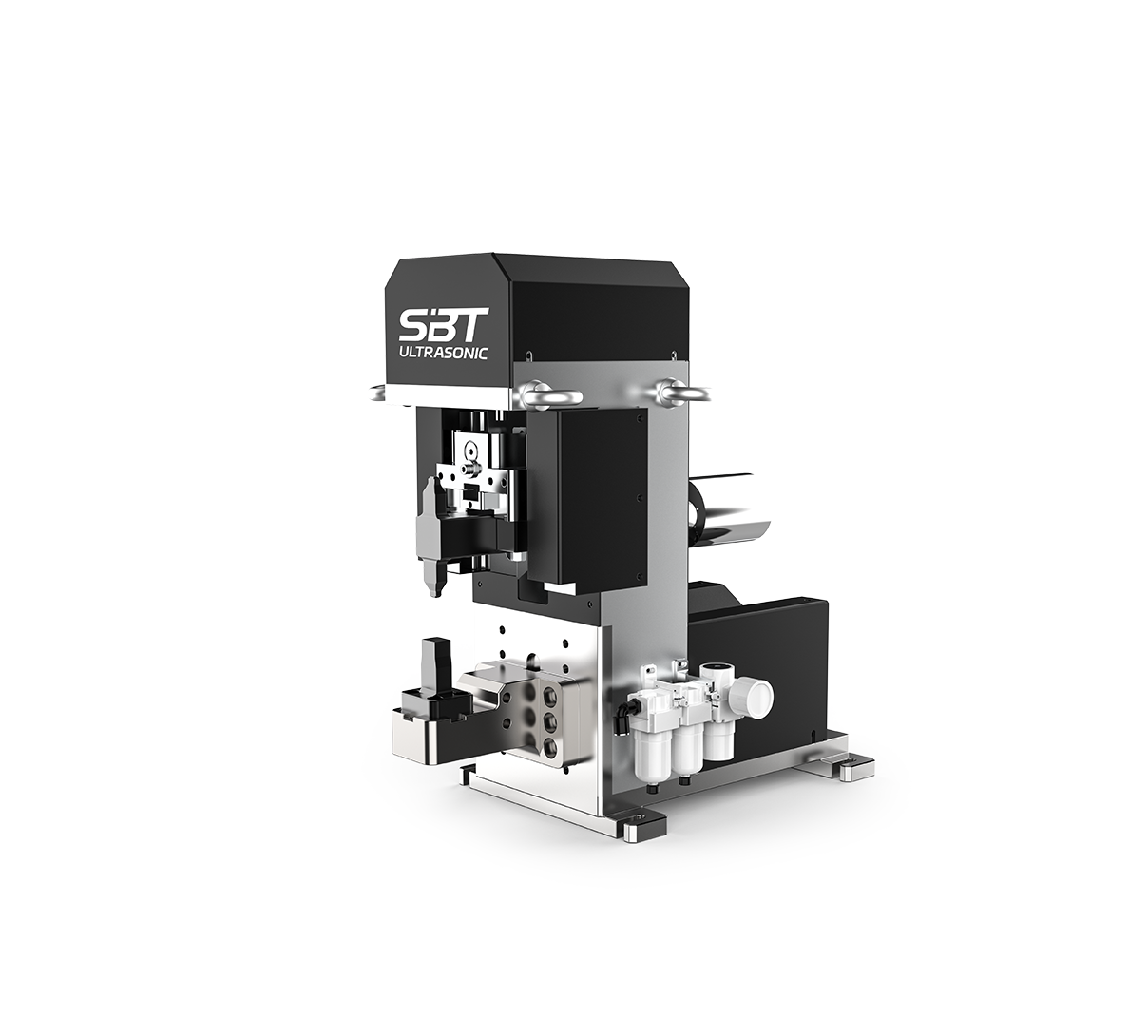

Rigid Ultrasonic Welder LS
Application
Multi-layer, thicker and larger welding area
Prismatic cell and pouch cell tab welding
Wire harness welding
Features
Compact and lightweight
Rigid structure with minimal deformation under force
Customizable welding horn and anvil tooling
Accurate welding positioning
Easy and safe operation
Optional welding quality online monitoring system
Technical Parameter
Model
2CS-LS Series
Frequency
20kHz
Rated Power
5.5kW
Transducer Power
6kW
Welding Pressure
≤2600N
Amplitude
≤65μm
Interact
Serial/Ethernet
NG Signal
I/O
Height Detection Accuracy
0.01㎜
Weight
75kg
Welding Mode
Time/Energy
